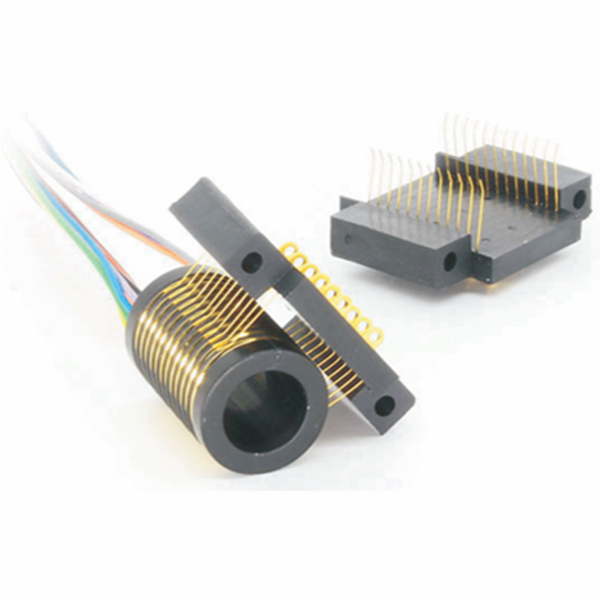

Panlink Customized Separate Slip Ring For Instrumentations / Avionics / Medical Equipment

Brand Name : Panlink

Certification : ISO 9001: 2015, CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Packaging Details : Carton Box, EPE Foam, Wooden Box(For Large Goods)

Model Number : PSR-F9-6

Price : Negotiable

Name : Separate Slip Ring

OD : 14.73mm

Length : 13.2mm

Bore : 9.55mm

Contact Material : Precious Metal

Lifetime : 10 Million Revolutions

Delivery Time : 4 Weeks

Supply Ability : 40 Million a Year

Contact Now

Separate Slip Ring

Panlink provides standard and custom slip ring designs to operate in high temperature environment. These designs are available in compact capsule, miniature through hole, large bore or cylindrical shapes to meet various applications’ technical and mounting need. Higher voltage, speed or pressure are possible. Unique design, critical material selection and high standard tests ensure these high temperature slip ring units’ high quality and reliability.

Main Application

Feature
• Instrumentation • Separate rotor ( copper ring) and stator (brush block)
• Test and measurement equipment • Support power and signal / data transfer
• Avionics • Easy for mounting
• Medical equipment • Low wear and low electrical noise
• Custom machinery • Maintenance-free and long lifetime

Model Rings

Current Rating

(amps)

Voltage Rating

(VAC)

Size

(mm)

Bore

(mm)

Speed

(rpm)
OD L
PSR-F9-6 6 2 380 14.73 13.2 9.55 100
Remark: Customization is available for current, voltage, speed, power and data combinations.

Model PSR-F9-6
Voltage Rating 380VAC
Current Rating

Power module: 4 rings 2A

USB module: 2 rings 2A
Insulation Resistance 200MΩ @ 500VDC
Electrical Noise 20mΩ max
Dielectric Strength 1000VAC/ 50Hz/ 60s
Rotating Speed, Max 100rpm
Torque During Rotation, Max 0.01N*M @ room temperature
Life Time, Min 10 million revolutions
Contact Material Precious Metal
Lead Wires 300mm AWG#28 Teflon Wires
Working Temperature -20℃ to +60℃
Storage Temperature -25℃ to +65℃
Relative Humidity 60%

PSR- F9-6 Dimensions

Panlink Customized Separate Slip Ring For Instrumentations / Avionics / Medical Equipment


Product Tags:

Panlink Separate Slip Ring



Customized Separate Slip Ring



Custom Medical Equipment Slip Ring
