Lightweight Military Slip Ring Manufacturers IP54 With Signal Handling Capabilities

Brand Name : Panlink

Certification : ISO 9001: 2015, CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Packaging Details : Carton Box, EPE Foam, Wooden Box(For Large Goods)

Name : Military Slip Ring

Contact Material : Gold-Gold

Circuit : Up to 168 Circuits

Housing Material : Aluminum Alloy or Engineer Plastic

Prtection Level : IP54

Price : Negotiable

Delivery Time : 4 Weeks

Supply Ability : 40 Million a Year

Contact Now

Military Capsule Slip Ring

To address the demands for multi-circuit and small-size slip rings in aerospace and military applications, Panlink has developed the “Small Size, High Power” Military Capsule Slip Ring. These units are constructed using military-grade custom materials and are manufactured to meet stringent military standards for machining accuracy and concentricity. They can accommodate up to 165 wires in a compact configuration, while maintaining a lightweight design. Each unit is housed in a robust, self-contained enclosure, offering exceptional signal handling capabilities.

Main Application Advantage
• Extremely precise and compact configuration
• Missiles and airborne camera platforms • Light weight
• Unmanned Aerial Vehicles(UAV) camera systems • High reliability suitable for military operation conditions
• Armed command vehicles • Long lifetime and maintenance-free
• Radar systems • Standard units and fast delivery

Feature
• Multi-circuits and small size
• All lead wires are Irradiation crosslinking wires
• Up to 168 circuits

• Compatible with 1553B, 100M Ethernet, Gigabit Ethernet, RS422, RS485, RS232, analog video and

various communication and control signals.
• Max 200rpm operating speed
• Gold on gold sliding contact

Model Rings Current(amps) Voltage(VAC) Size(mm) Speed Page
1 2 48 120 OD Length
PSR-JC-80 80 × × 18 54.8 200
PSR-JS-78 78 × × 18.4 54.6 200
PSR-JC-38 38 × 22 37 200
PSR-JC-44 44 × × 22 54.5 200 P
PSR-JC-36 36 × × 22 57.3 200
PSR-JC-60 60 × × 22 91.7 200 P
PSR-JS-60 60 × × 25 91.7 200
PSR-JM-78 78 × × 28 54.5 200 P
PSR-JC-165 1651 × × 52 115 200 P
Remark: This slip ring is compatible with MIL-STD-1553B, 100M Ethernet, Gigabit Ethernet, RS422, RS485, RS232, analog video, and various communication and control signals.

Specification
Voltage Rating 240VAC
Current Rating 1A per circuit
Insulation Resistance 1000MΩ @ 2000VDC
Electrical Noise 40mΩ max
Dielectric Strength 600VDC/ 50Hz/ 60s
Rotating Speed, Max 300rpm
Torque During Rotation, Max 0.01N.m
Life Time, Min 1 million revolutions
Contact Material Gold-Gold
Lead Wires 12color AWG#28 Teflon Wires
Housing Material Aluminum Alloy or Engineer Plastic
Working Temperature -40℃ to +80℃(-40℉ to +176℉)
Storage Temperature -45℃ to +85℃(-49℉ to +185℉)
Shock MIL-STD-810E
Protection Level IP54

PSR-JC-38 Dimensions

Lightweight Military Slip Ring Manufacturers IP54 With Signal Handling Capabilities

PSR-JC-44 Dimensions

Lightweight Military Slip Ring Manufacturers IP54 With Signal Handling Capabilities

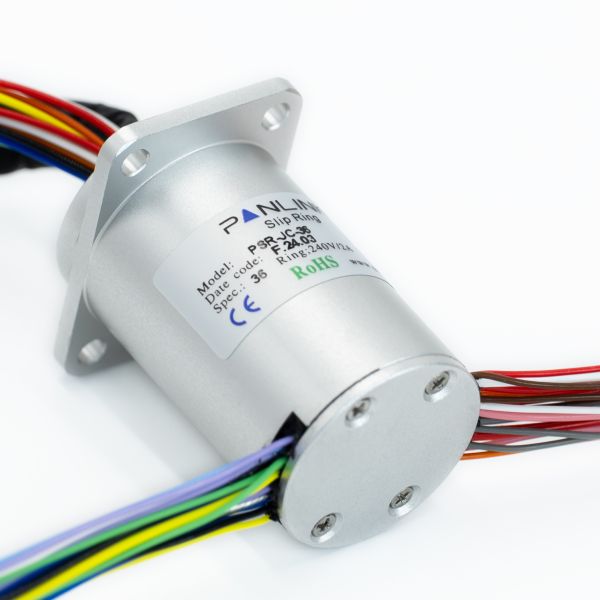

PSR-JC-36 Dimensions

Lightweight Military Slip Ring Manufacturers IP54 With Signal Handling CapabilitiesLightweight Military Slip Ring Manufacturers IP54 With Signal Handling Capabilities
