111 Circuit Hybrid Slip Ring IP54 for High Signal Density Industrial

Name: 111 Circuit Hybrid Slip Ring IP54 for High Signal Density Industrial
Brand: Panlink
Price: 1 USD

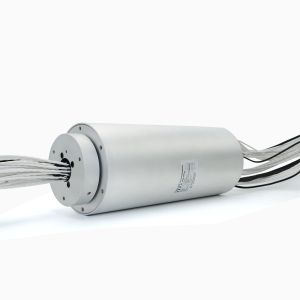

Wholesale 111 Circuit Hybrid Slip Ring IP54 for High Signal Density Industrial from china suppliers

Brand Name : Panlink

Model Number : LTTS105STY

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Certification : ISO 9001: 2015, CE

Packaging Details : Carton Box, EPE Foam, Wooden Box(For Large Goods)

Name : Hybrid Slip Ring

Circuits : 18 × power; 93 × signal

Contact Resistance : 40mΩ

Contact Material : Precious Metal

Housing Material : Aluminum Alloy

Price : Negotiable

Delivery Time : 4 Weeks

Supply Ability : 40 Million a Year

Contact Now

111-Circuit Hybrid Slip Ring (18xPower + 93xSignal, 4 A max) Engineered for High-Signal-Density Industrial, Military and High-End Automation Applications

Features	Applications
• High-Density Signaling: 93 channels for extensive data, control,	• Radar antenna pedestal
and sensor transmission.	• Turret system
• Superior Signal Integrity: low contact resistance (40mΩ).	• Port crane / marine crane
• Flexible Power Distribution: Dedicated circuits for components	• Large rotary kiln / converter
with varying power needs.	• CMM
• Rugged Design: Wide operating temperature range and IP54 protection.	• Large-scale mine-clearance / EOD robot

111 Circuit Hybrid Slip Ring IP54 for High Signal Density Industrial

Model	Bore DIA inch(mm)	Size: OD x L inch (mm)		Circuits	Voltage	Speed (rpm)
LTTS105STY	/	5.12″ x 12.8″ (130 x 325)		18×power 93×signal	500VDC/50VDC	30
Specifications
Circuits			18×power; 93×signal
Insulation Resistance			100MΩ@500VDC
Electrical Noise			Max. 40mΩ
Dielectric Strength			1000VAC@50Hz,60s
Torque			Max. 2.0 N.M
Working Temperature			-4℉~+131℉(-20℃~+55℃)
Storage Temperature			-35℉~+167℉(-25℃~+75℃)
Relative Humidity			95±3%(30℃+5℃)
Protection Level			IP54
Contact Material			Precious Metal
Housing Material			Aluminum Alloy
