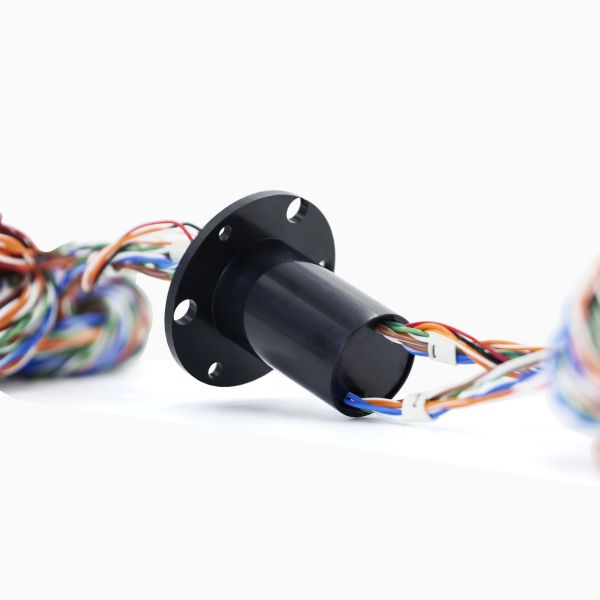

2 Channel Gigabit Ethernet Slip Ring 60rpm With USB Chansmission

  • 1
  • 2

Brand Name : Panlink

Model Number : PSR-C24-4S2G

Certification : ISO 9001: 2015, CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Packaging Details : Carton Box, EPE Foam, Wooden Box(For Large Goods)

Price : Negotiable

Delivery Time : 4 Weeks

Supply Ability : 40 Million a Year

Name : Gigabit Ethernet Slip Ring

USB Connections : 1 USB transmission

Ethernet Connections : 2 Channels 1000M baseT

MTTR : ≤0.5h

MTBF : ≥40000h

Length : 42.53mm

Contact Material : Precious Metal

Contact Now

2 Channel Gigabit Ethernet Slip Ring Capable of USB Chansmission

Ethernet+USB

Feature:Application:
• 1 USB transmission• Industrial Automation and Manufacturing
• 2 Channels 1000M baseT Ethernet• Security and Video Surveillance
• MTTR: ≤0.5h• Special Equipment and High-End Applications
• MTBF: ≥40000h• Testing and Demonstration Equipment
• Length: 42.53mm


2 Channel Gigabit Ethernet Slip Ring 60rpm With USB Chansmission

ModelGbit EthernetSignal Channels

OD x L

inch(mm)

CircuitsVoltageTotal Rings
PSR-C24-4S2G2(1x)USB

0.87″ x 1.67″

(22 x 42.53)

1A, 2A240VAC24
Specification
Model PSR-C24-4S2G
Capsule Length 42.53mm
Ethernet Connections 2 x 1000BaseT Ethernet
Insulation Resistance 500MΩ@500VDC
Dielectric Strength 500VAC@50Hz
Operating Speed 60rpm
Contact Material Precious Metal
Housing Material Aluminium Alloy
Working Temperature -40℃~+50℃
Storage Temperature -45℃~+65℃
Humidity 93%
